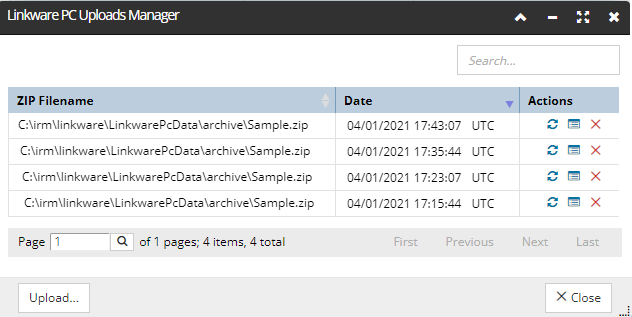

The Linkware PC Uploads Manager dialog is used to upload new Linkware PC files and to view the list of previously uploaded files. To access this Manager, select the appropriate option from the Managers drop-down menu in the function bar in the main application screen:
This opens a standard Manager-type dialog which lists all previously uploaded files in a data grid by filename, as well as some action buttons and a Quick Search box for convenience:
- opens the standard Upload file dialog
- resubmits the file to be run again.
- deletes the uploaded file. When clicked, the user is prompted to verify deleting both the record and corresponding ZIP file, and acts accordingly to remove the record entry and the ZIP file.
- opens a read-only “Linkware PC Upload Details” dialog showing the details for each operation
The Linkware PC Upload Details dialog is organized into the following tabs:

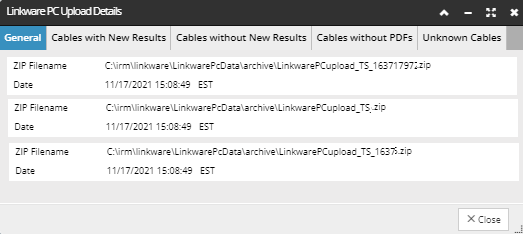

General: shows only the name and the upload date of the selected file, while other tabs show different lists of Cables, depending on the result of the parsing operation:
Cables with New Results: Cables that exist in the FLW file and that have a PDF results file containing new test data
Cables without New Results: Cables that exist in the FLW file and that have a PDF results file but the test results are not updated.

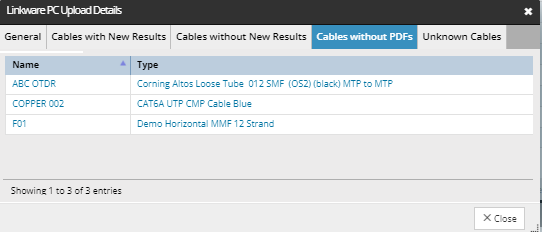

Cables without PDFs: lists all cables in the FLW file by their Name and Type that do not have an associated PDF results file.

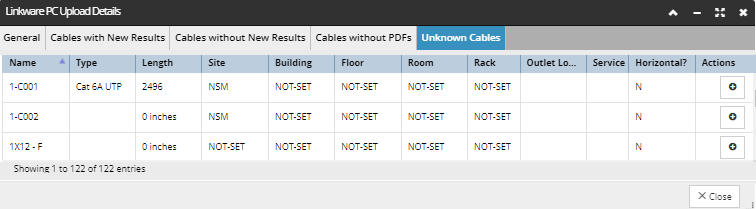

Unknown Cables: a list of Cables that exist in the FLW file that do not have ac corresponding cable object in IRM. The user can create the cable in IRM using the Action button.
- opens the standard Upload file dialog
- resubmits the file to be run again.
- deletes the uploaded file. When clicked, the user is prompted to verify deleting both the record and corresponding ZIP file, and acts accordingly to remove the record entry and the ZIP file.
- opens a read-only “Linkware PC Upload Details” dialog showing the details for each operation
