Below screen shots are from the Space Object context menu in both Object Grid and Design World.
Object Grid

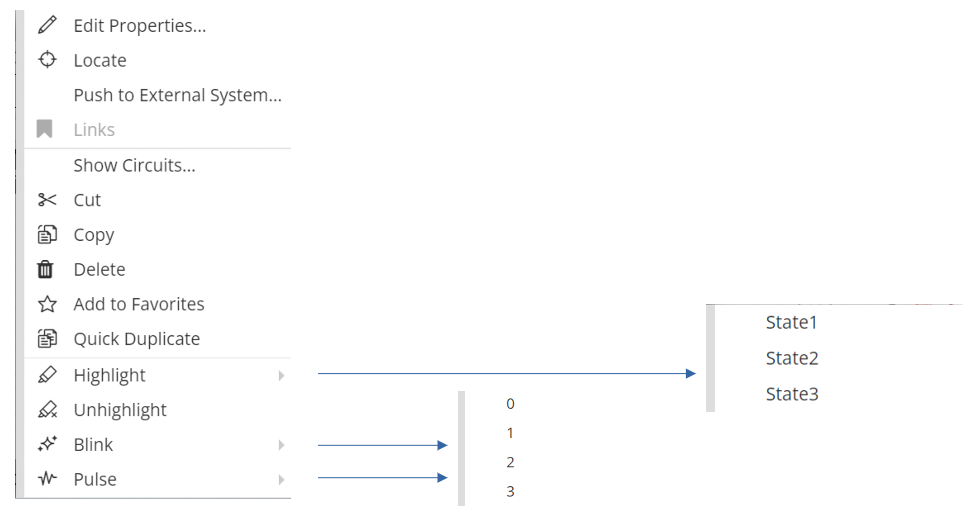

Object Grid Area Context
Edit Properties: Opens the object's Editor Dialog.
Locate: Locate a Space object in the Design World.
Push to External System: Opens the Push to External System dialog so you can transfer IRM objects to select external systems, such as those that support CMDBs.
Links: Provides a graphical link to another Area or View. (Links option is enabled only if the object has been linked another Area or View)
Show Circuits: Opens the Select Object(s) dialog to show the Circuits.
Cut: Copy the Space to the clipboard and remove it from the Design World.
Copy: Copy the selected Space to the clipboard.
Delete: Delete the selected Space.
Add to Favorites: Add the Space in you Favorite list in the Quick View.
Quick Duplicate: Make a quick duplicate in the Object Grid.
Highlight: Put the selected Space in one of 3 highlight states.
Unhighlight: Unhighlight the selected Space.
Blink: Blink the selected Space (alternately show and hide it)
Pulse: The object gradually gets brighter then gradually gets duller, at the specified rate defined in seconds.
0: 0 s
1: 1 s
2: 2 s
3: 3 s
Design World

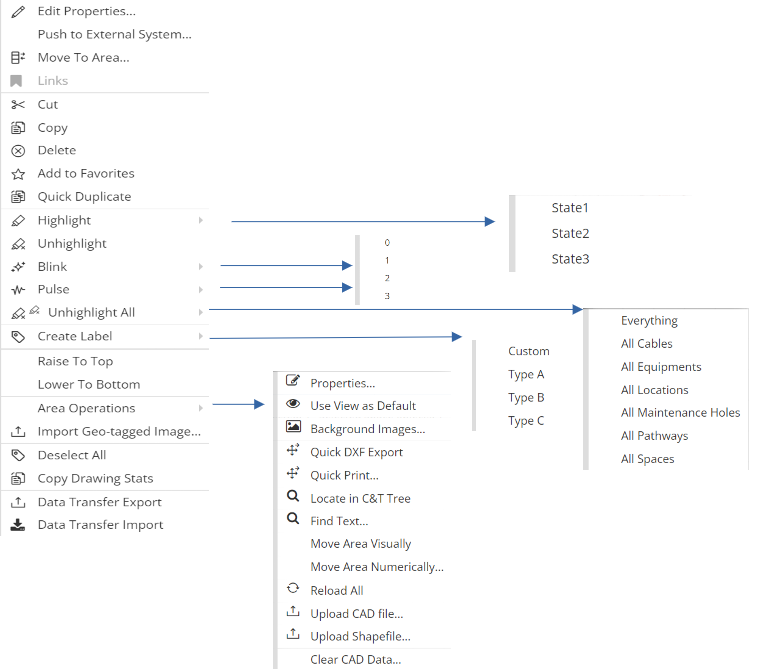

Design World Space Context Menu
Edit Properties: Opens the Object's Editor Dialog.
Push to External System: Opens the Push to External System dialog so you can transfer IRM objects to select external systems, such as those that support CMDBs.
Move to Area: Opens a list of Areas that you can move your selected Space object to.
Links: Provides a graphical link to another Area or View. (Links option is enabled only if the object has been linked another Area or View)
Cut: Copy the Space to the clipboard and remove it from the Design World.
Copy: Copy the selected Space to the clipboard.
Delete: Delete the selected Space.
Add to Favorites: Add the Area in your Favorite list in the Quick View.
Quick Duplicate: Make a quick duplicate in the Design World.
Highlight: Put the selected Space in one of 3 highlight states.
Unhighlight: Unhighlight the selected Space.
Blink: Blinks the selected Space (alternately show and hide it)
Pulse: The object gradually gets brighter then gradually gets duller.
Unhighlight All: Provides an option to unhighlight specific objects in the active Space.
Everything: Unhighlights all highlighted objects in the selected Space
All Cables: Unhighlights all highlighted Cables in the selected Space
All Equipments: Unhighlights all highlighted Equipment in the selected Space
All Locations: Unhighlights all highlighted Locations in the selected Space
All Maintenance Holes: Unhighlights all highlighted Maintenance Holes in the selected Space
All Pathways: Unhighlights all highlighted Pathways in the selected Space.
Create Label: Create a label for the selected Space.
Raise to Top: Raise the Space to the top, when there are multiple items stacked over each other.
Lower to Bottom: Lower the Space to the bottom, when there are multiple items stacked over each other.
Area Operations:
Properties: Open the Area Properties dialog.
Use View as Default: Saves the current view as the default view every time you open this particular area.
Background Images: Open the Area Properties dialog Background Images tab.
Quick DXF Export: A .zip file with the resulting .dxf output file appears in the browser for download and you will receive an email notification when the file is ready.
Quick Print: Opens the Quick Area Export dialog for printing.
Locate in C&T Tree: Locate the Area in the Categories and Types Tree.
Find Text: Opens the Find Text Instances dialog to search for the required text.
Move Area Visually: Gives you the ability to drag your area in all directions within the Design World boundaries.
Move Area Numerically: Opens the Move Area dialog where you can insert your desired coordinates to place your Area.
Reload All: Reloads all currently-visible data in the Area.
Upload CAD File: Opens the Import CAD File dialog, where you can upload your CAD file.
Upload Shapfile: Opens the Import Shapefile dialog, where you can upload your Shape file.
Clear CAD Data: Clear CAD data for the whole Area. Does not delete Equipment, Cables and other IRM Managed Objects.
Import Geo-Tagged Image: Opens the Geo-Image Import dialog to upload your image.
Deselect All: Deselects all the selected objects in your Area.
Copy Drawing Stats: Copies your drawing stats and you can paste it as a JSON file in a text editor.
Data Transfer Export: Opens the Data Transfer Export dialog to start the download. Inside the dialog, you'll find options that let you customize your download preferences.
Data Transfer Import: Allows you to import a file that was created via Data Transfer Export.
Note that when multiple objects are selected, not all of the above options will be available, and the exact set of options depends on whether all objects are in the same Super Category, same Area, etc.
