The Dependency View schematic diagram shows Equipment objects as rectangles (nodes) with text labels that show basic data about that Equipment object. Users can configure which property values are displayed using the Dependency View Field Chooser.
The dialog is accessed from two places in the application:
in the Dependency View dialog itself, via the button in the top-left of the central diagram panel:
in the Global Settings dialog
The Dependency View Field Chooser dialog is a standard data grid-based dialog organized into two tabs:

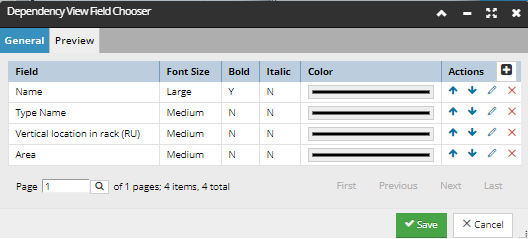

General, which shows a list of Equipment fields and their text properties, along with action buttons for adding, removing, editing, or just rearranging the order of the fields:

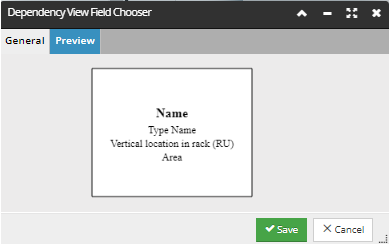

Preview, which displays an example of the final look of the text

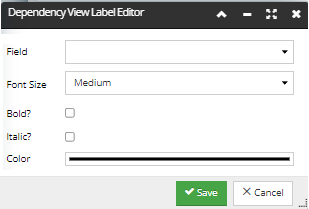

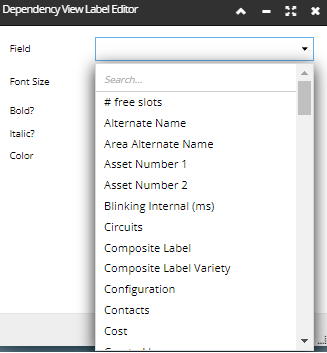

When adding a new Label, or editing an existing Label an Editor sub-dialog opens and allows the user to select the Equipment field to display from a drop-down menu of existing Equipment fields;
