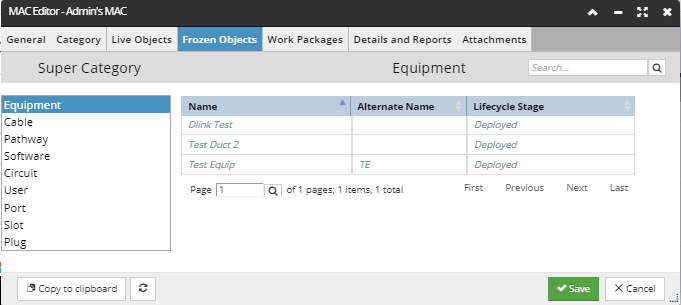

Frozen Objects tab

This tab lists all objects that pre-existed in the database but are now included in the MAC.

A Frozen clone object is created whenever the following occurs to an existing Design World object in the MAC:

the object is moved to a new position
a cable is connected to the object
a cable is disconnected from an object
a user is assigned to an object
a user is removed from an object
a card is inserted into a slot
a card is removed from a slot
a cable or pathway is re-routed

The tab displays frozen objects by Super Category in the same layout as in the Live Objects tab.

A Frozen Object must have an entry in the Live Object tab, but an entry in the Live Object tab will not always have an entry in the Frozen object tab.
