The following is a use case example of removing an Equipment object from a Slot, specifically, the Equipment that was inserted into the Slot in the previous sub-topic.

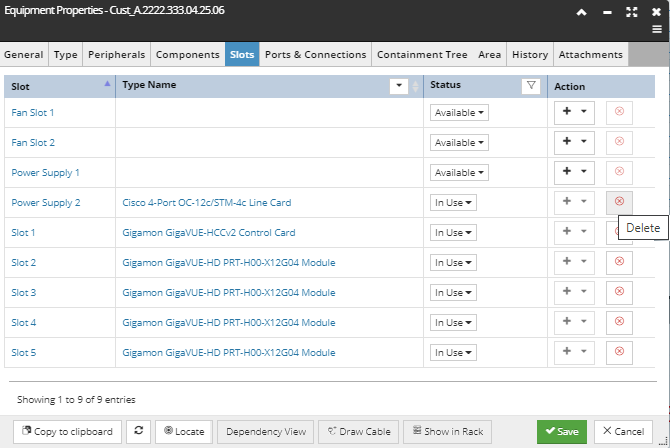

The starting point for this operation is the Slots tab in the Equipment Properties dialog, which enables Equipment removal by clicking on the "x" Action button (enabled only for Slots that have something installed in it). For this example, we'll remove the Card from row 4, installed in the "Power Supply 2" Slot:

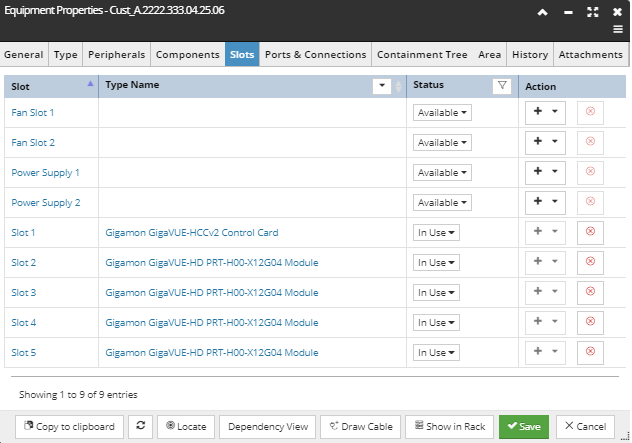

This automatically removes any Equipment previously placed into the Slot (without any pop-out dialog for confirming the action) and the Slot State automatically transitions from In Use to Available:
The Slot is now available for inserting other Equipment.
