Below screenshots are from the Maintenance Hole context menu in both Object Grid and Design World.
Object Grid

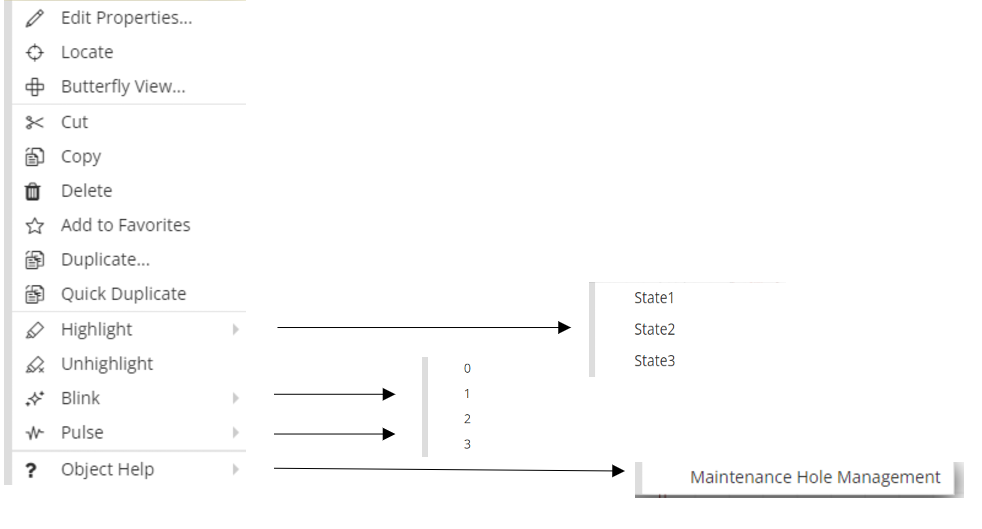

Object Grid Maintenance Hole Context menu.
Edit Properties: Opens the Object's Editor Dialog.
Locate: Locate the selected Maintenance Hole in the Design World.
Butterfly View: Opens the Butterfly View for the Maintenance Hole.
Cut: Copy the selected Maintenance Hole to the clipboard and remove it from the Design World.
Copy: Copy the selected Maintenance Hole to the clipboard.
Delete: Delete the selected Maintenance Hole.
Add to Favorites: Add the selected Maintenance Hole in the Favorites list in the Quick View.
Duplicate: Opens the Duplicate Maintenance Hole dialog where you can set the quantity, name and more info and initiate the duplication process.
Quick Duplicate: Make a quick duplicate of the selected Maintenance Hole.
Highlight: Put the selected Maintenance Hole in one of 3 highlight states.
Unhighlight: Unhighlight the selected Maintenance Hole.
Blink: Blink the selected Maintenance Hole (alternately show and hide it)
Pulse: The object gradually gets brighter then gradually gets duller, at the specified rate.
0: 0 s
1: 1 s
2: 2 s
3: 3 s
Object Help: Opens the documentation and direct you to Equipment overview, Equipment Types and Equipment Management sections.
Design World

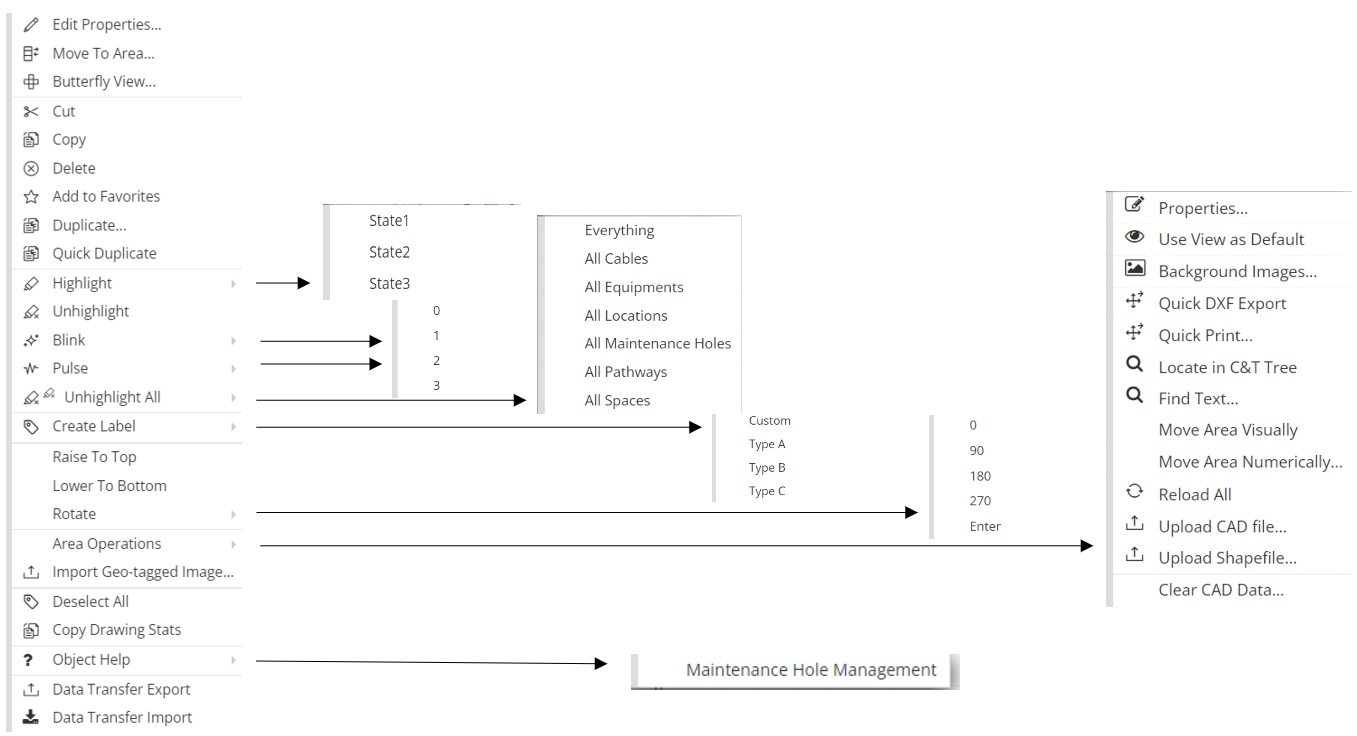

Design World Maintenance Hole Context menu.
Edit Properties: Opens the Object's Editor Dialog
Move to Area: Opens a list of Areas that you can move the selected Maintenance Hole to.
Butterfly View: Opens the Butterfly View for the Maintenance Hole.
Cut: Copy the selected Maintenance Hole to the clipboard and remove it from the Design World.
Copy: Copy the selected Maintenance Hole to the clipboard.
Delete: Delete the selected Maintenance Hole.
Add to Favorites: Add the selected Maintenance Hole in the Favorites list in the Quick View.
Duplicate: Opens the Duplicate Maintenance Hole dialog where you can set the quantity, name and more info and initiate the duplication process.
Quick Duplicate: Make a quick duplicate of the selected Maintenance Hole.
Highlight: Put the selected Maintenance Hole in one of 3 highlight states.
Unhighlight: Unhighlight the selected Maintenance Hole.
Blink: Blink the selected Maintenance Hole (alternately show and hide it)
Pulse: The object gradually gets brighter then gradually gets duller, at the specified rate.
0: 0 s
1: 1 s
2: 2 s
3: 3 s
Unhighlight All: Provides option to Unhighlight specific objects in the active Area.
Everything: Unhighlight all highlighted objects in the active Area.
All Cables: Unhighlight all highlighted cables in the active Area.
All Equipments: Unhighlight all highlighted Equipment in the active Area.
All Locations: Unhighlight all highlighted Locations in the active Area.
All Maintenance Holes: Unhighlight all highlighted Maintenance Holes in the active Area.
All Pathways: Unhighlight all highlighted Pathways in the active Area.
Create Label: Create a label for the selected Maintenance Hole.
Raise to Top: Raise the Maintenance Hole to the top, when there are multiple items stacked over each other.
Lower to Bottom: Lower the Maintenance Hole to the bottom, when there are multiple items stacked over each other.
Rotate: Rotate the Maintenance Hole to 90, 180, 270 or enter the desired angle.
Area Operations:
Properties: Open the Area Properties dialog.
Use View as Default: Saves the current view as the default view every time you open this particular area.
Background Images: Open the Area Properties dialog Background Images tab.
Quick DXF Export: A .zip file with the resulting .dxf output file appears in the browser for download and you will receive an email notification when the file is ready.
Quick Print: Opens the Quick Area Export dialog for printing.
Locate in C&T Tree: Locate the Area in the Categories and Types Tree.
Find Text: Opens the Find Text Instances dialog to search for the required text.
Move Area Visually: Gives you the ability to drag your area in all directions within the Design World boundaries.
Move Area Numerically: Opens the Move Area dialog where you can insert your desired coordinates to place your Area.
Reload All: Reloads all currently-visible data in the Area.
Upload CAD File: Opens the Import CAD File dialog, where you can upload your CAD file.
Upload Shapfile: Opens the Import Shapefile dialog, where you can upload your Shape file.
Clear CAD Data: Clear CAD data for the whole Area. Does not delete Equipment, Cables and other IRM Managed Objects.
Import Geo-Tagged Image: Opens the Geo-Image Import dialog to upload your image.
Deselect All: Deselects all the selected objects in the Area.
Copy Drawing Stats: Copies your drawing stats and you can paste it as a JSON file in a text editor.
Object Help: Opens the documentation and direct you to Equipment overview, Equipment Types and Equipment Management sections.
Data Transfer Export: Opens the Data Transfer Export dialog to start the download. Inside the dialog, you'll find options that let you customize your download preferences.
Data Transfer Import: Allows you to import that was created via Data Transfer Export.
Note that when multiple objects are selected, not all of the above options will be available, and the exact set of options depends on whether all objects are in the same Super Category, same Area, etc.
