Data Export Configuration


The Data Export Configuration is used to describe and define the content to be included in the Export file.

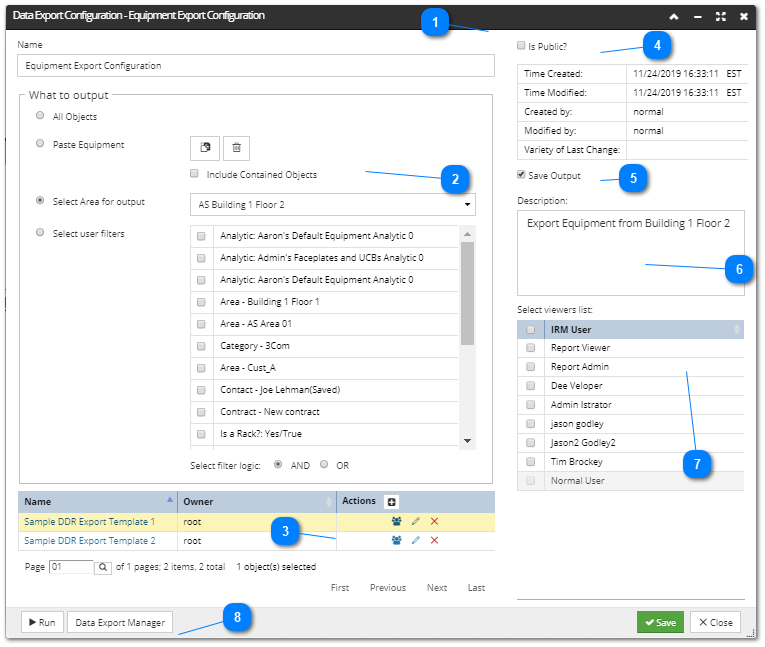

Data Export Configuration
1

Data Export Configuration Name

Short Description for the Configuration and this the name that will be displayed to other users who can Edit, Run or View the Configuration.
2

What to Output

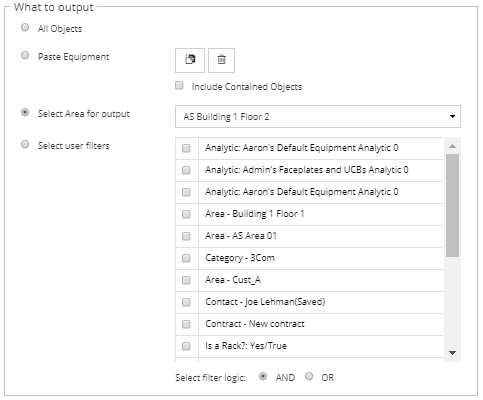

2. What to Output
Using one of the available options allows the user to specify what objects will be included in the data export:
  • All Objects
  • Paste Equipment
  • Select Area for output
  • Select user filters
3

Data Export Template

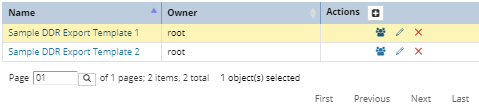

3. Data Export Template
The Data Column Template allows the user to specify what column data for the object specified in step 4 will be exported.
4

Sharing

4. Sharing
When checked the Report Configuration can be viewed and edited by any other User.
5

Save Output

5. Save Output
Save the Configuration and resulting export file into Global Console, allowing Viewers to download and run the Data Export Configuration via the Global Console interface.
6

Configuration description

6. Configuration description
Full description describing the purpose and content that will be exported when running this Data Export configuration
7

Output Viewers

7. Output Viewers
Specifies which users are able to download the results of the Data Export Configuration within Global Console.
8

Run Configuration

8. Run Configuration
Run the Report Configuration which will update Global Console with resulting export file.
