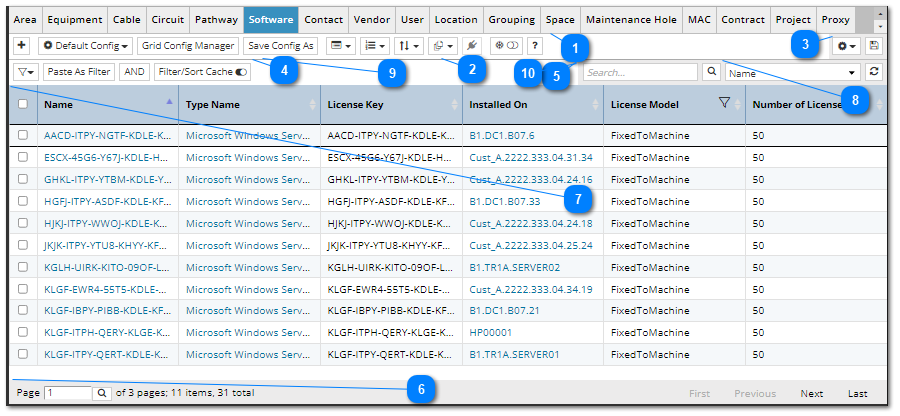

The Main Grid zone has 10 regions pertaining to keyboard operation:
Object Grid tabset
Function bar
Column Selection control
Filter controls
Quick Filter
Pagination bar
Object Grid
Drop down menu
Active Filters
Search string in Quick Filter
Object Grid tabset
Using the Tab and Shift + Tab key combinations, the user can switch between visible tabs, starting from the active tab.
Tab - switch to the next tab (to the right) from the active one.
Shift + Tab - switch to the previous tab from the active one.
The following actions are provided in the Object Grid tabset:
If there is only one tab, the keyboard shortcut won't switch the active tab.
If we have more than one visible tab and the active tab is the first and we press Shift + Tab, the active tab becomes the last, the same comes out from the end, there is a rearrangement through all visible tabs.
When you switch the tab via the keyboard, the Object Grid tabset itself is updated. That is, if the tabs do not fit into one line and the active tab is at the end of the first line and we press the Tab key, then the active tab is on the first position of the second line and the Object Grid tabset goes to the second line.
After setting the active tab, the focus is on the Object Grid.
Active filters exist only when filters are added to the Object Grid. Once there has been a transition to Active Filters, through keyboard shortcuts, the cursor always goes to the first active filter.
Here is a detailed description of the keyboard work for Active Filters :
→ ( right arrow ) – move the cursor to the next filter.
← ( left arrow ) – move the cursor to the previous filter.
DELETE key – delete the active filter where the cursor is.
ESCAPE key – return to Main Grid zone.
The following actions are provided for Active Filters:
If there is only one active filter then the arrow keys don't do anything.
When the cursor is moved using the keyboard, there is an update of the "Active Filters" layout. That is, if the active filters do not fit into one line and the cursor is at the end of the first line and we press the → key ( right arrow ), then we have the cursor on the first filter of the second line and "Active Filters" goes to the second line.
Note: When you're in certain UI contexts, such as a numbered editor, or in the " Select column name " dropdown list in Quick Filter, you can only navigate via the keyboard to the Object Grid tabset.
