The Plug Types Manager is a standard Manager dialog that shows a data grid with additional options for adding, editing and removing listed items, as well for pagination and Quick Search.

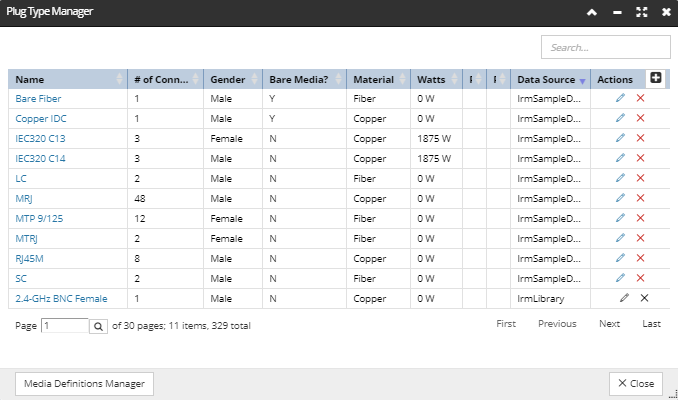

The screenshot image below shows Plug Types Manager dialog listing all existing Plug Types:

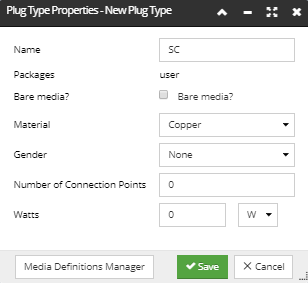

Click on the pencil or the + icon open the same pop-up dialog - Plug Type Properties:
Each Plug Type is specified by the following properties (most of which are already explained in previous topics as well) :
Name of the Plug Type
Packages field is set automatically, depending on the current user and cannot be altered
Bare media? is a Boolean value property:
if checked (true), the Plug is a pseudo-Plug that represents the bare end of a media
if un-checked (false), the Plug is an ordinary Plug that represents a real-world plug)
the type of media Material that the Plug is designed to work with, can be either Copper (set by default) or Fiber
Gender of the Plug, can be None (set by default), Female or Male
Number of Connection Points
The number of Watts that can be carried over the Plug. The unit for this property can be set to either W (Watts) or kW (kilowatts)
